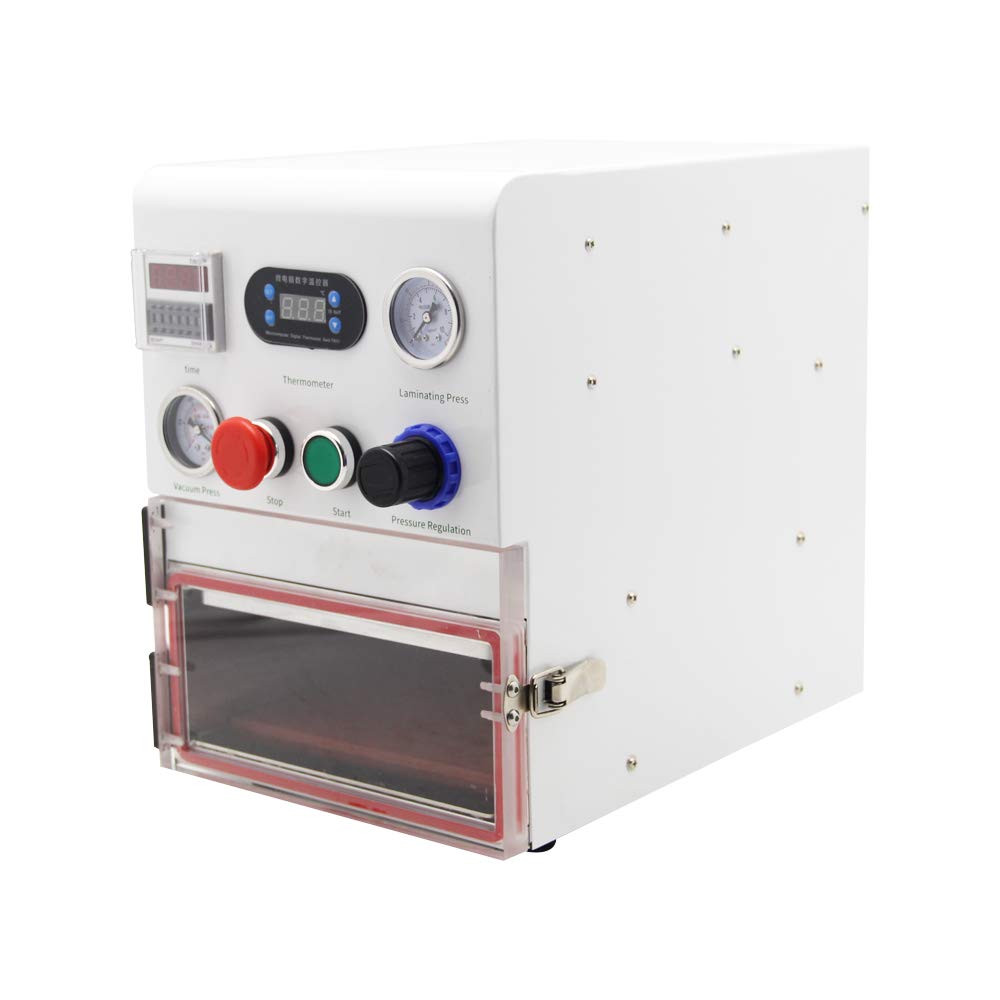

MXBAOHENG Vacuum OCA Laminating Machine for LCD Screen Repair - Bubble-Free Laminator for iPad, Tablets, Curved Screens & Cellphone Touch Panels | Perfect for Professional Screen Repair Shops & DIY Device Maintenance

Product parameters Model: TBK-108P Power supply: AC100V/220V Power rating: 300W Working Pressure: 0.4-0.6 Mpa Work Environment: 20-23 °C, clean, dust-free Fitting Way: flat laminationMaximum laminating temperature: 65 ℃Productivity: 40s/1pcs Heating Mode: heating thermostat Adapt Size: Max. 14’’ Laminate: 4 LCDs a time Net Weight: About 19kg Gross Weight: About 25kg Laminating: 205*90*300mm Size: 240*360*330mm Product features Suitable for touch screen cover plate (cover Lens) and functional Glass Sensor of OCA laminating process. Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process. No mold, no bubble, a key to start, easy to operate. Good thermostat, the temperature can be accurate to ±1℃. Precision pressure regulator, pressure ±0.001Mpa. Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration, no color pattern after lamination, no indentation, LCD chaos color.

Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process.

No mold, no bubble, a key to start, easy to operate.

Good thermostat, the temperature can be accurate to ±1℃.

Precision pressure regulator, pressure ±0.001Mpa.

Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration, no color pattern after lamination, no indentation, LCD chaos color.
