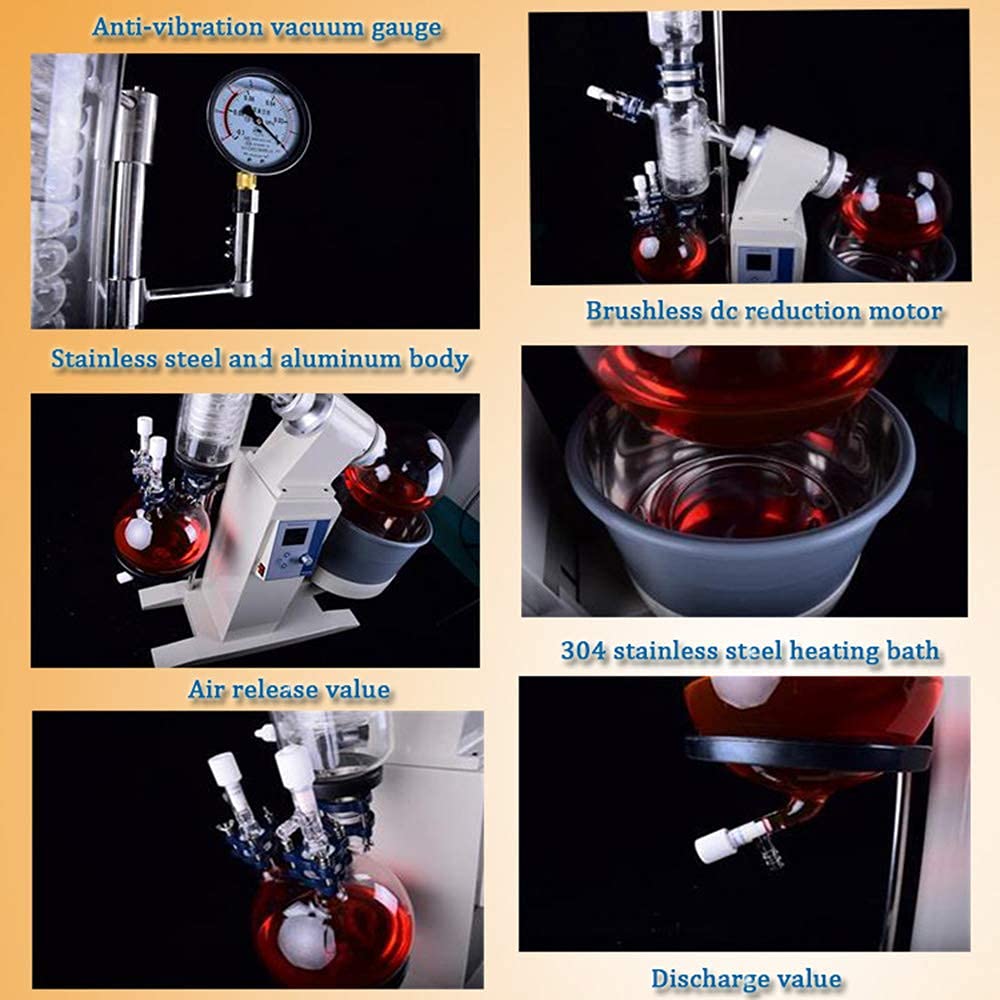

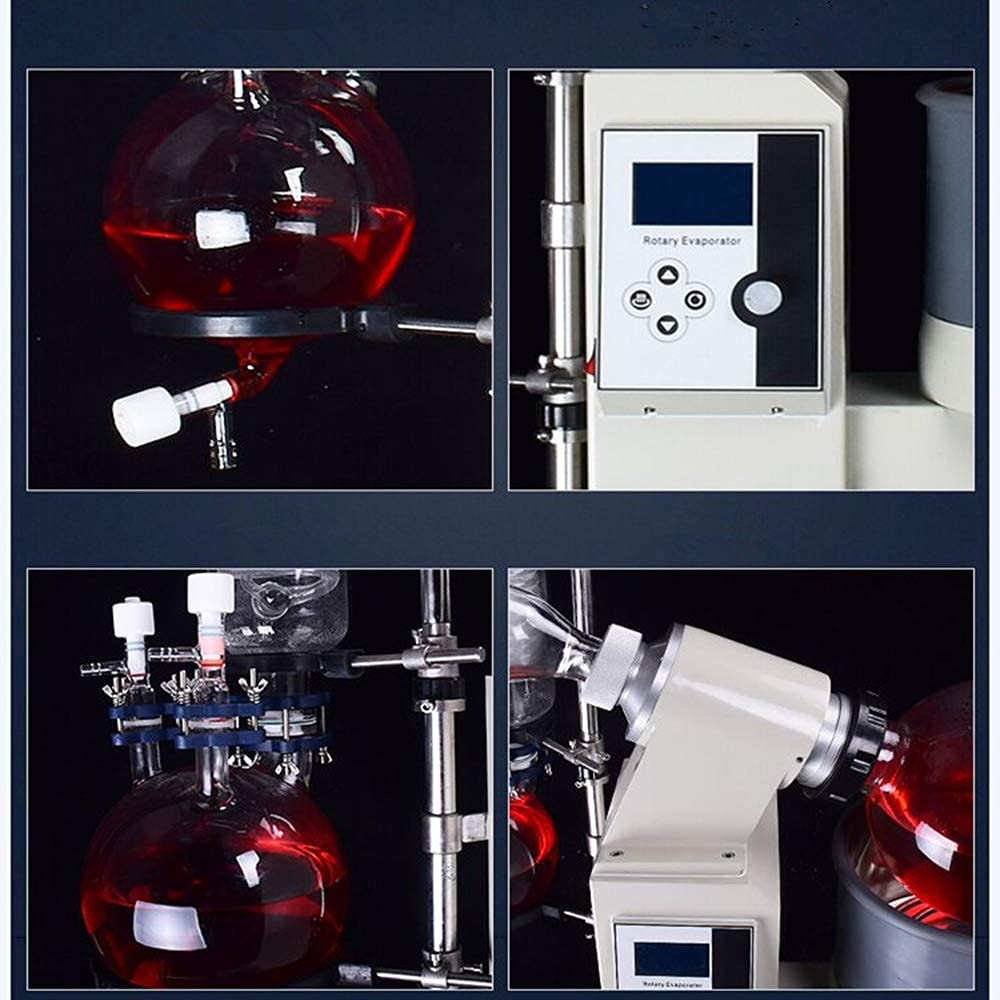

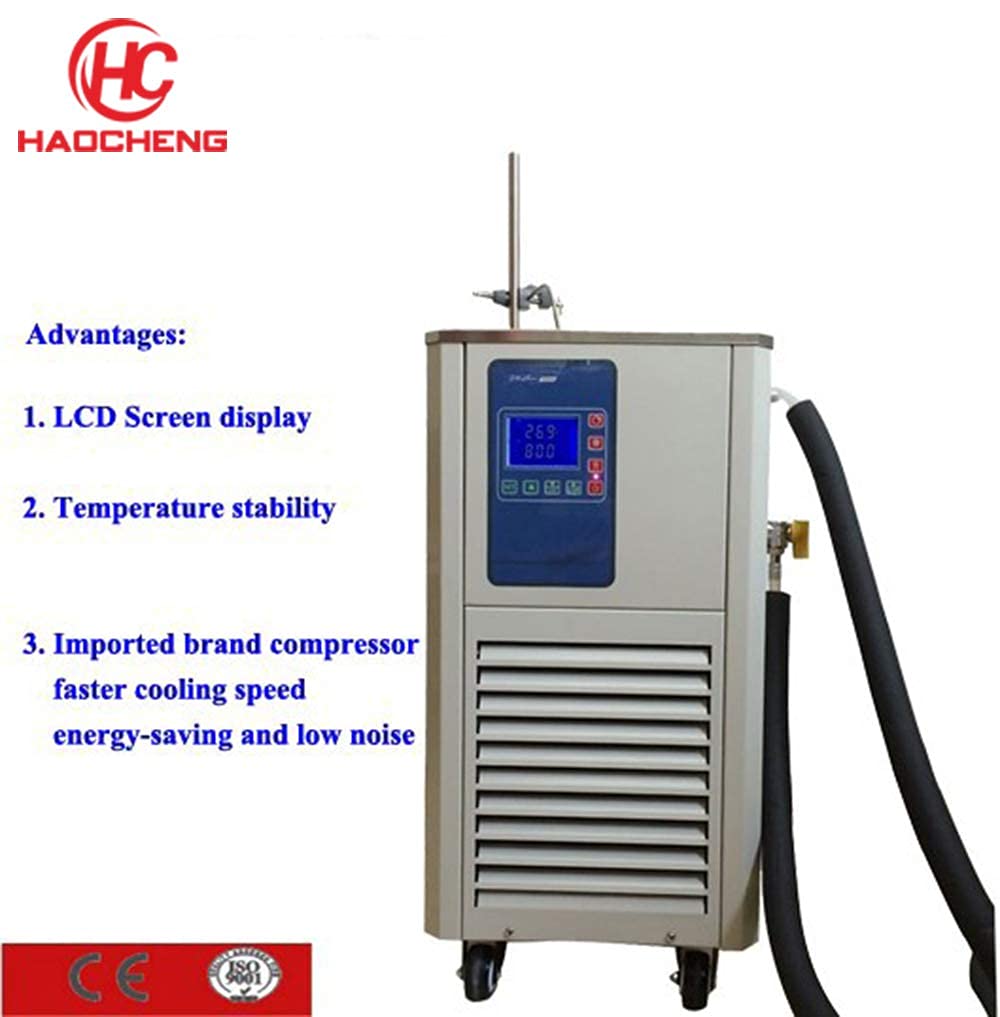

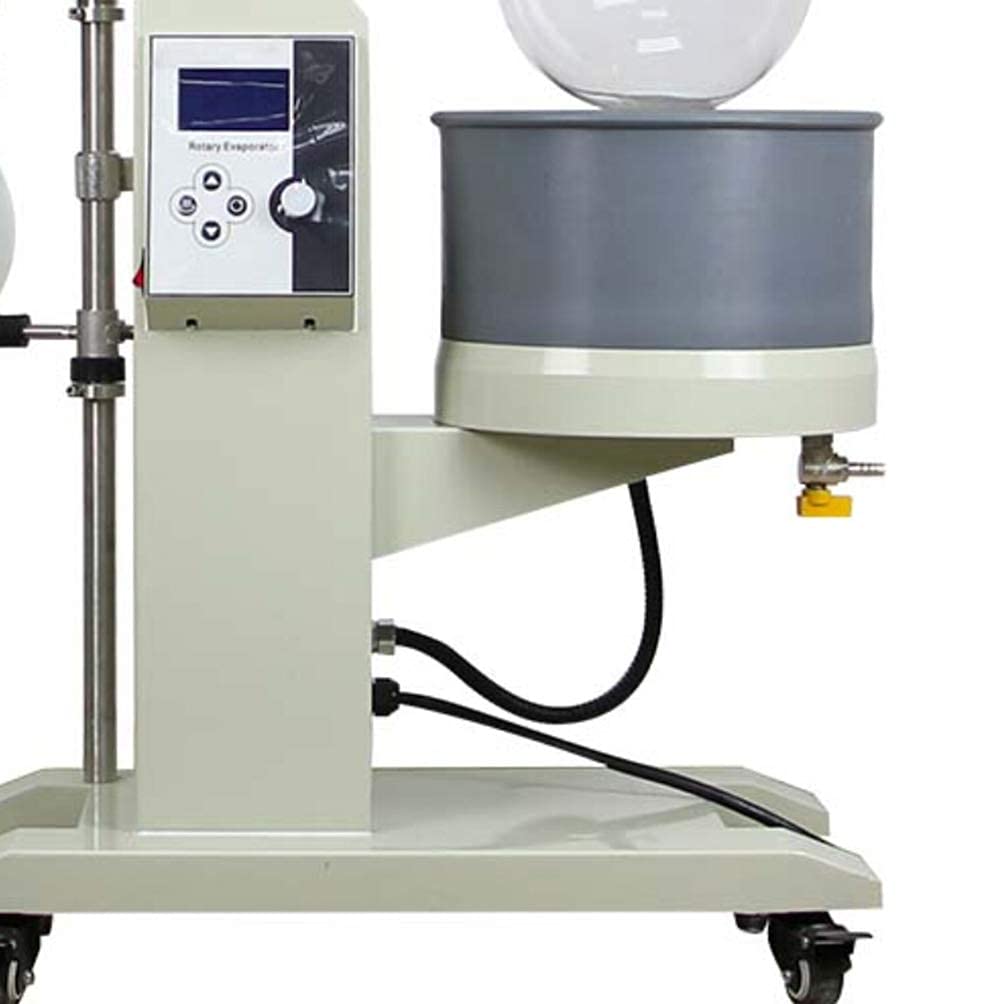

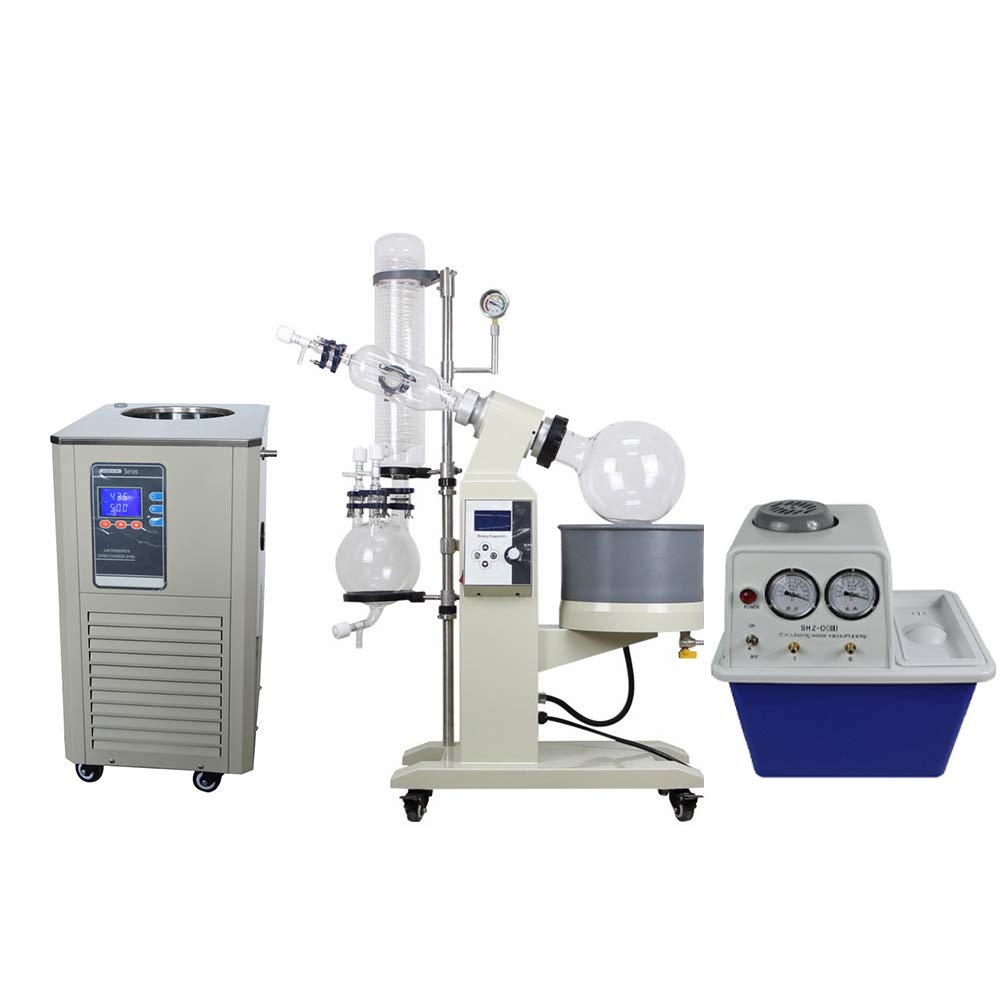

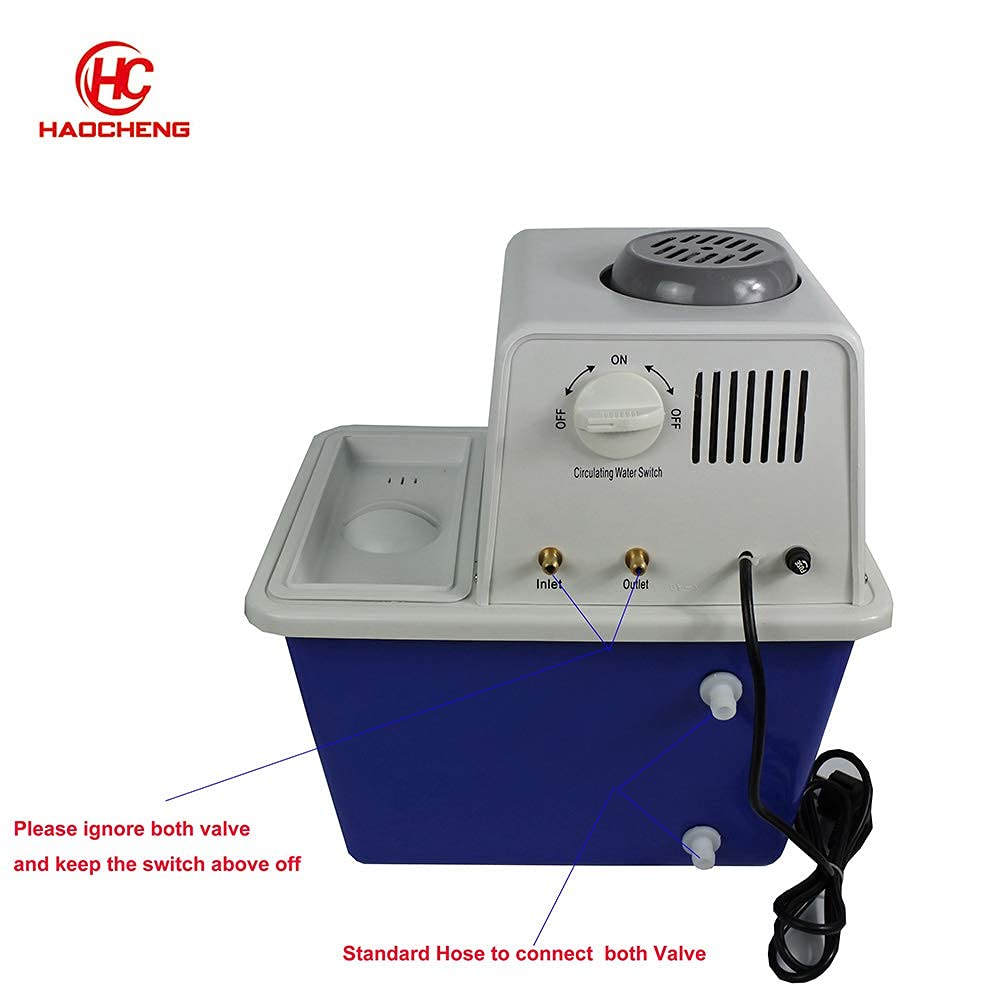

Introduction ◎ The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. ◎ The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low Temperature Cooling Liquid Circulating Pump. Specification Rotary evaporatorModel: HEA-5B Glass Material: GG-17 High Borosilicate Power (V/Hz): 110V 60Hz Speed Regulation: Digital Step-less Regulation Rotation Speed: 0-140 RPM Set Temperature: 0-150℃ Temperature Control: Digital Temperature Control Evaporating Flask Capacity: 5L Receiving Flask Capacity: 3L Evaporation Capacity: Alcohol /= 4 L/H Heater Max Current Draw (Amps): 18.2 Water Bath Material: 304 Stainless Steel Water Bath Size: 11.5 x 7.5 in. Lifting Function: Electric Lifting Stroke: 120mm / 4.7 in. Total Power Consumption (kw): 2.2 kw Dimensions: 36 x 18 x 54 in. Weight: 90 lbs. Recirculating Chiller: Water Tank Capacity: 5L Make: Embraco Refrigerant: R404A Cooling capacity at 0°C/32°F: 400 W Temperature Range(°C):-20 to 20 Vacuum Pump: Flow: 60L /min Maximum vacuum: 0.098 Mpa Single-head exhaust volume: 10L Power : 180W Tank Volume: 15L Package Content 1 x Rotary Evaporator ---Carton Box 1 x Vacuum Pump-Carton Box 1 x Chiller ----Wooden Box
