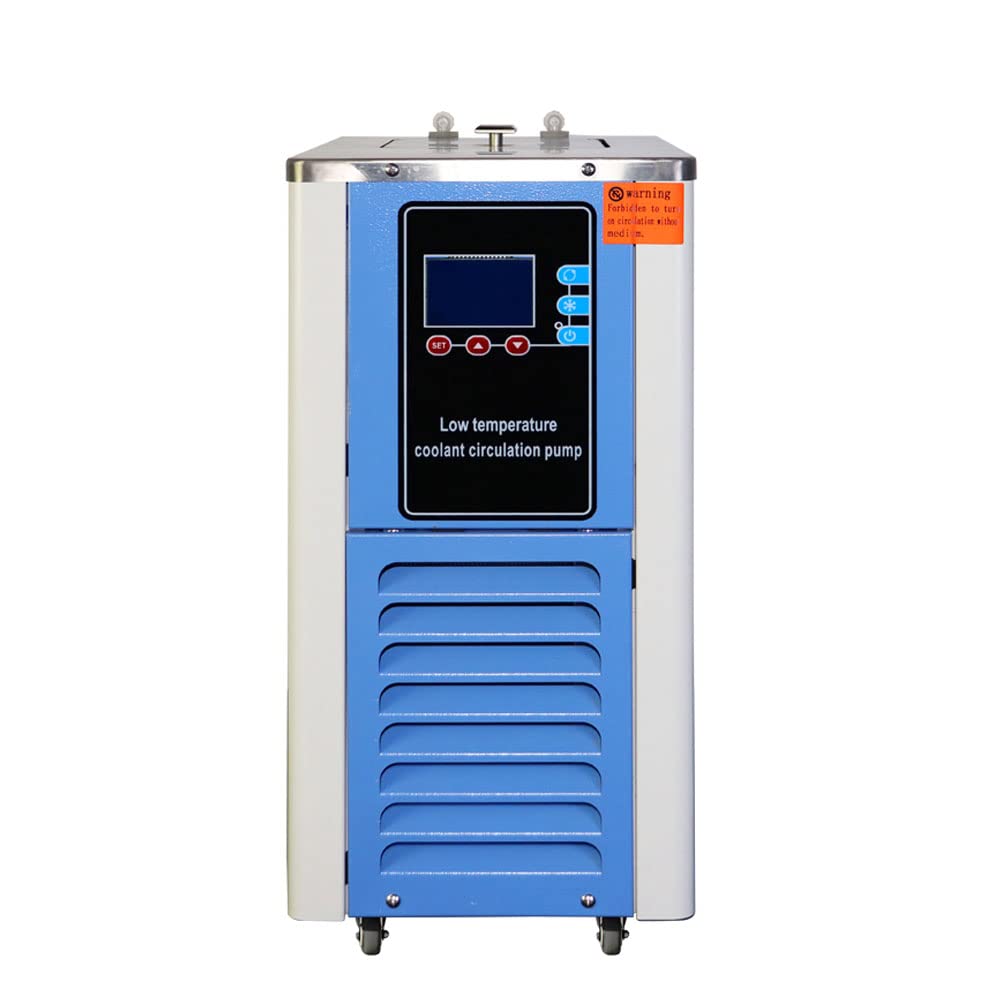

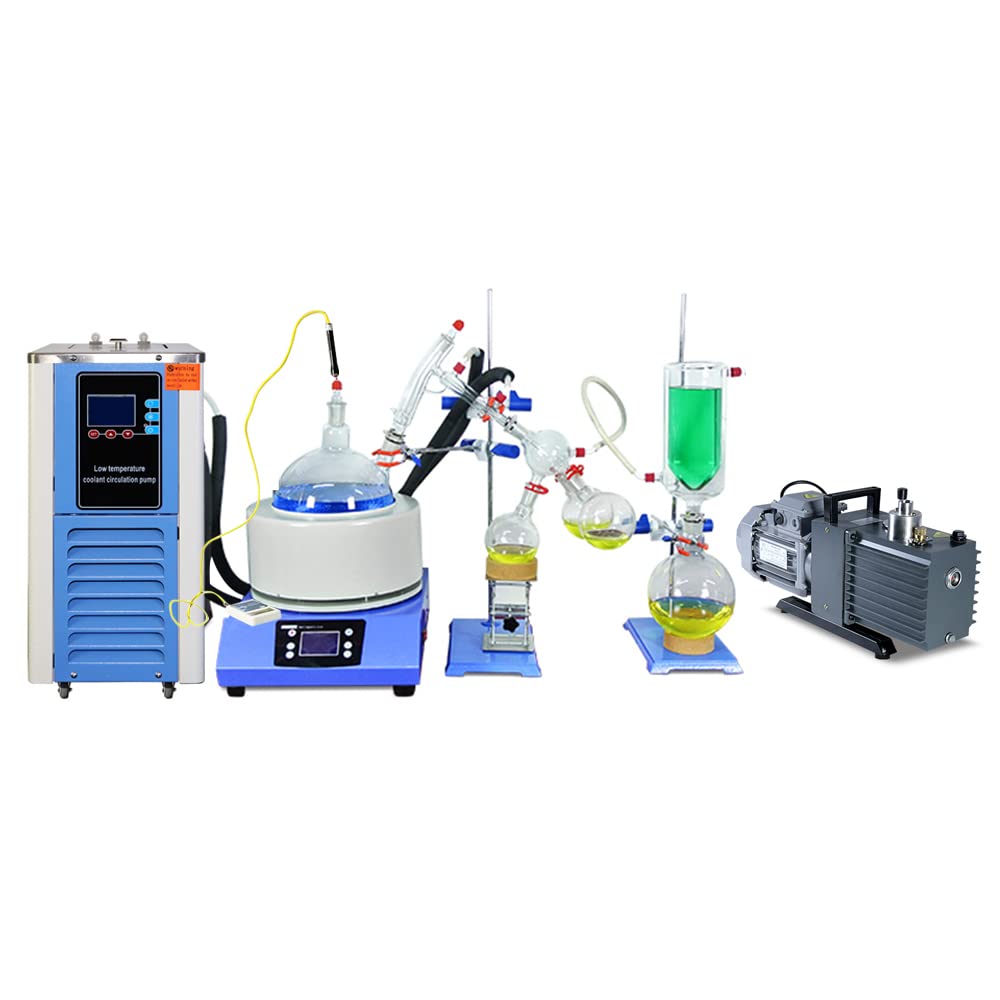

5L Short Path Distillation Kit Complete Set with 5L Cooling Chiller & 2XZ-2 Rotary Vane Vacuum Pump | Lab Distillation Apparatus for Essential Oil Extraction, CBD Purification & Chemical Processing | Professional Vacuum Distillation Equipment for Home Labs & Research Facilities

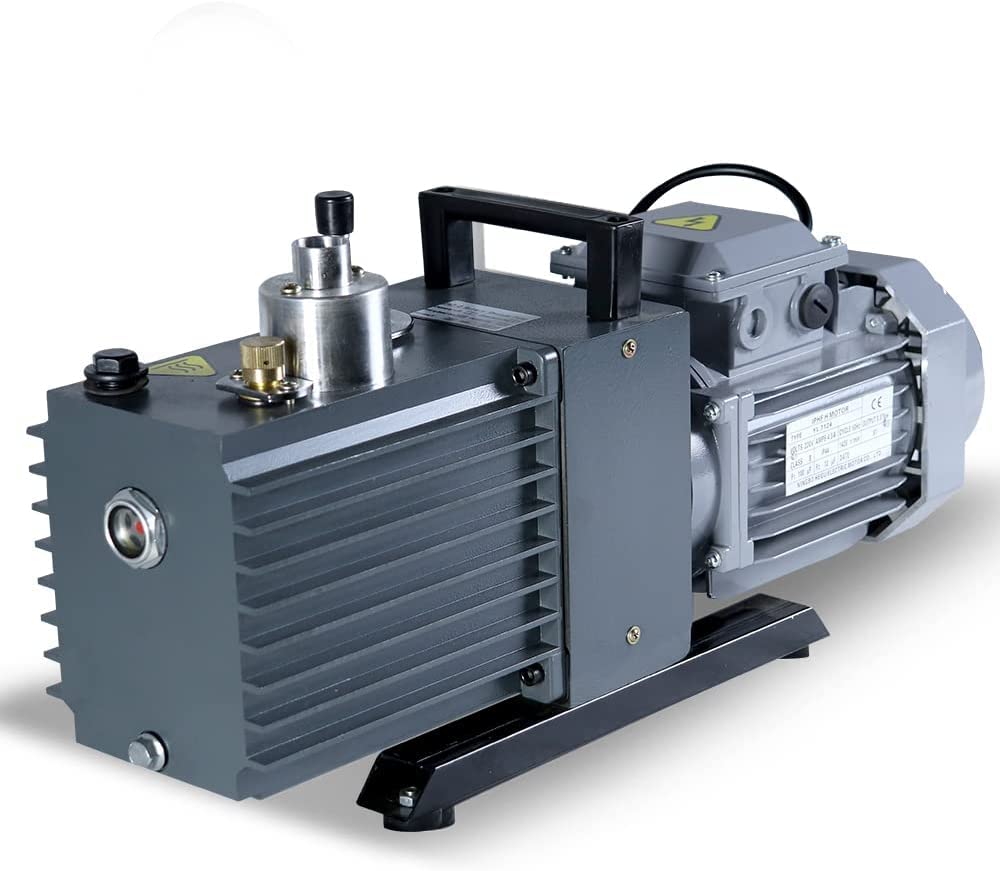

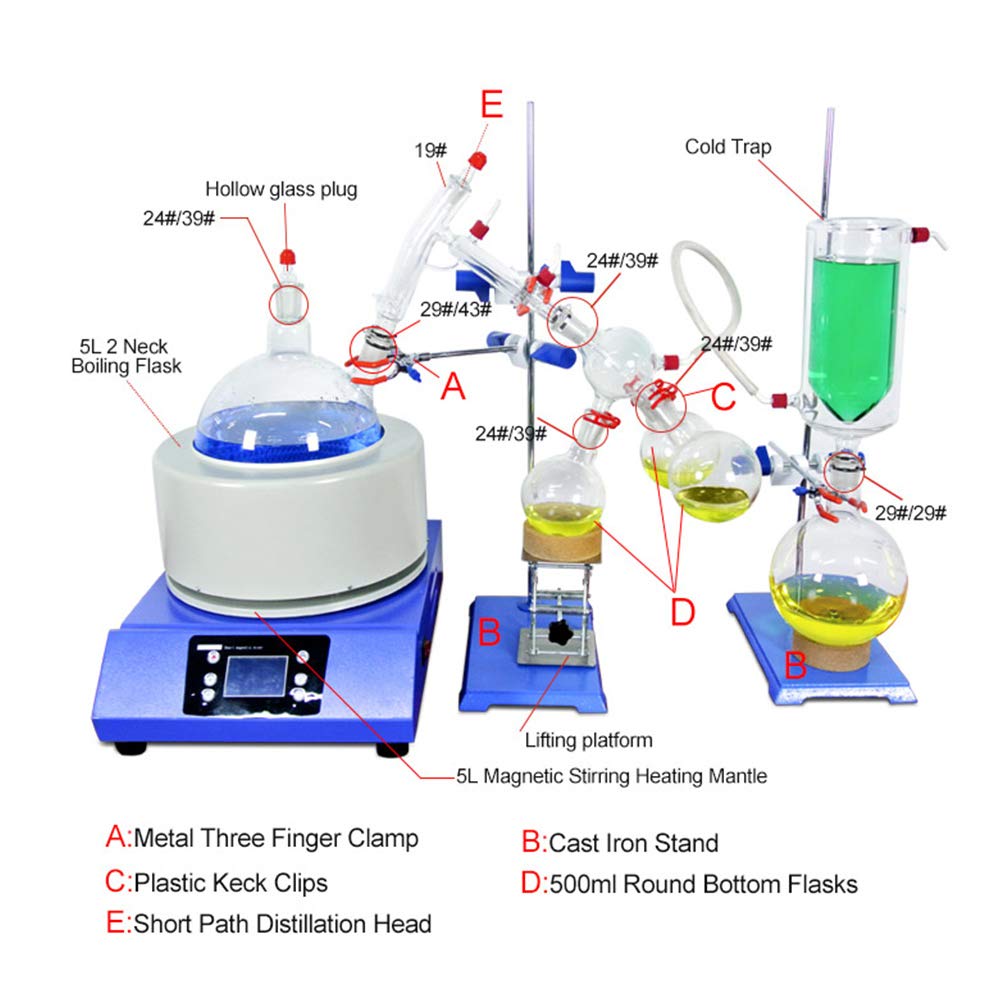

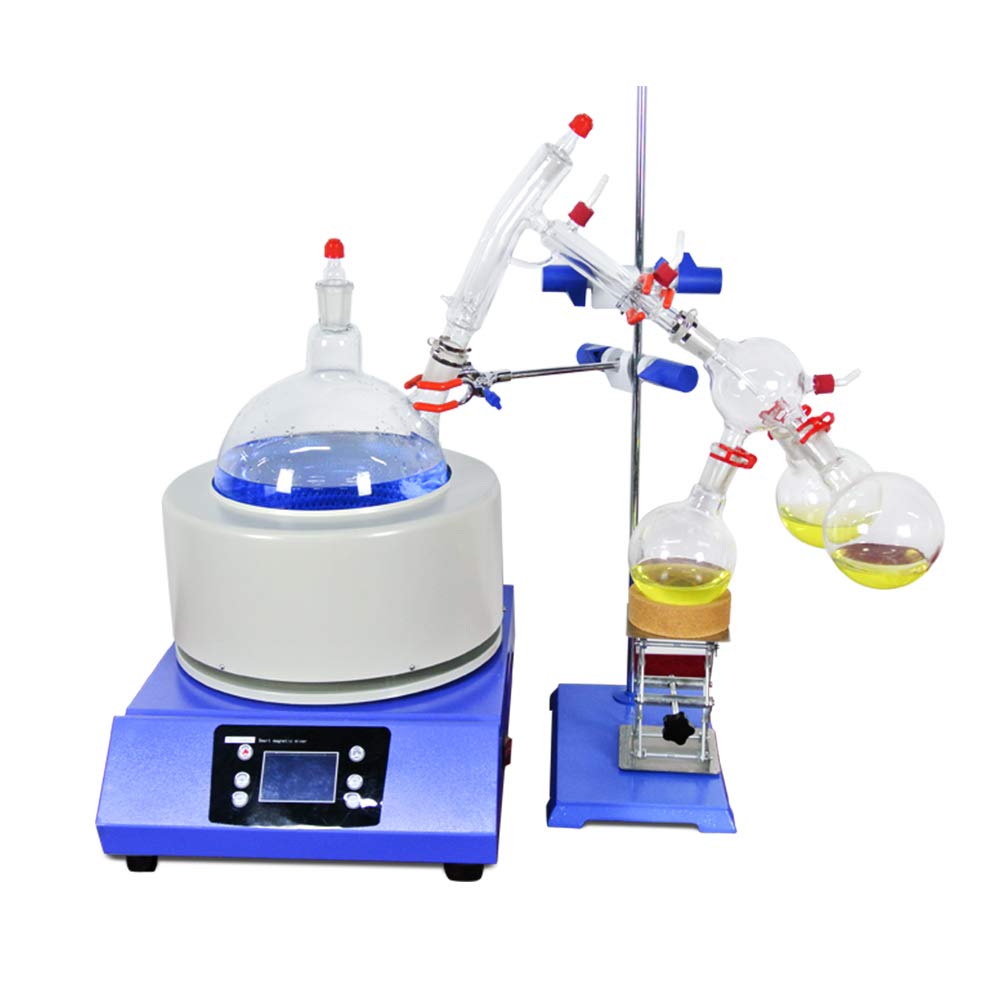

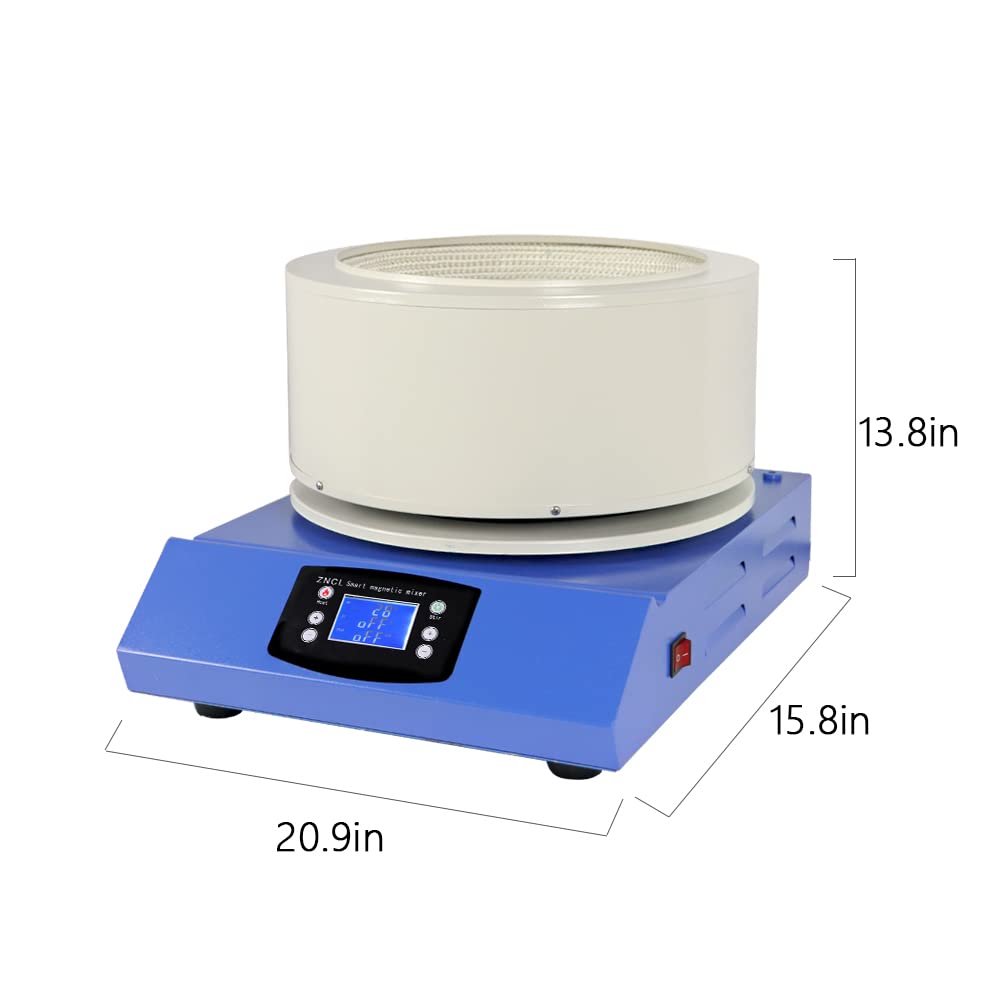

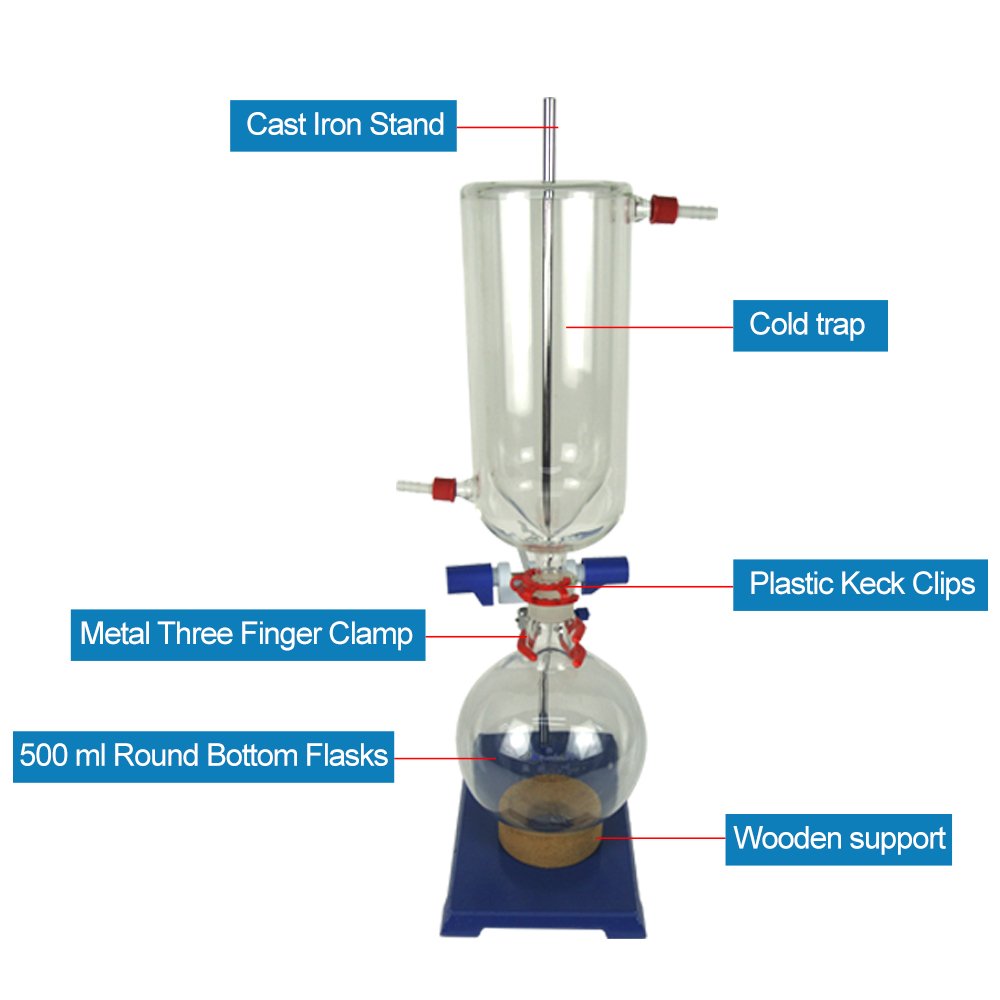

Distillation is the process of separating the components or substances from a liquid mixture by selective evaporation and condensation. Distillation may result in essentially complete separation (nearly pure components), or it may be a partial separation that increases the concentration of selected components of the mixture. In either case the process exploits differences in the volatility of the mixture's components. In industrial chemistry, distillation is a unit operation of practically universal importance, but it is a physical separation process and not a chemical reaction. We have 2L ,5L 10L, 20L short path distillation complete kit for you to choose. 5L short path distillation 5000 ml Digital Heating Mantle 15000 ml 2 Neck Boiling Flask 1Short Path Distillation Head 1Cow Receiver 11000 ml Round Bottom Flasks 3Plastic Keck Clips 7Cast Iron Stand 1Metal Three Finger Clamp 1Cold Trap 1 5L heating mantle Voltage:110V/60HZMotor Power:40W,Heating power:900WWorking time:continuous work ＞8 hoursInsulation:E-glass fibers, can be temperature 450 degrees Rotary Vane Vacuum Pump Voltage:110V/60HZExhausting Speed:2L/SMotor Power:0.37KWVaccum Oil Capacity:0.8L，Type：ISO viscosity grade 100 vaccum oilRotary Speed:1400r/minColor:BlackDimensions(mm):488*145*280Noise:≤60 Chiller Voltage:110V/60HZRefrigerated Circulator Volume:5LRefrigerated Circulator lowest temperature:-15℃Refrigerated Circulator Temperature range:-10℃Refrigerated Circulator capacity:1328-319WRefrigerated Circulator flow:20L/minRefrigerated Circulator lift:4-6m Warm Warning Due to the international shipping limit,we can't add vacuum oil to the vacuum pump,please add ISO viscosity grade 100 Vaccum oil before using. Warm Warning Due to the international shipping limit,we can't add vacuum oil to the vacuum pump,please add ISO viscosity grade 100 Vaccum oil before using.

【Distilation Parameters】Boiling Flask Size 5L；Receiving Flask Size 3 x 500mL；Run time 4 to 8 hours；Distillation Temperature Range 140-250C；Vaccum Degree 0.098mpa

【Advantages】Short path distillation achieve the condensate a short distance travel to the receiving flask, greatly increasing the efficiency of the experiment

【Professional Components】In order to make producing more effective，Vacuum-jacketed distillation adapter with 4 Vigreux stages. 3-way cow adapter accommodates up to 3 pcs of 500mL flasks were carefully designed.

【High Quality】This distillation kit use high quality and heavy duty Borosilicate 3.3 durable glass,Detachable plastic 3/8"(10mm) hose barbs is designed for maximized safety

【Aftersales Service】All units are 100% inspected before leaving HNZXIB. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), Please contact us within 24 hours of delivery by the carrier
