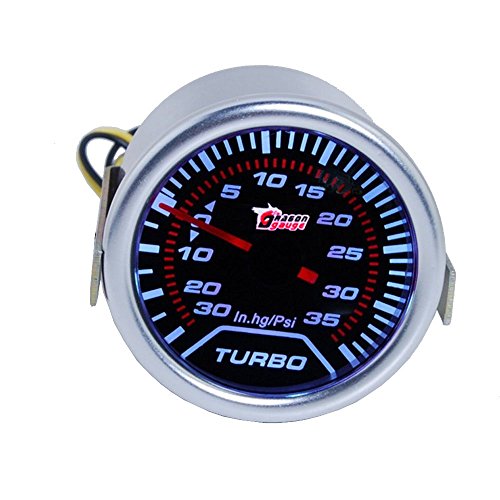

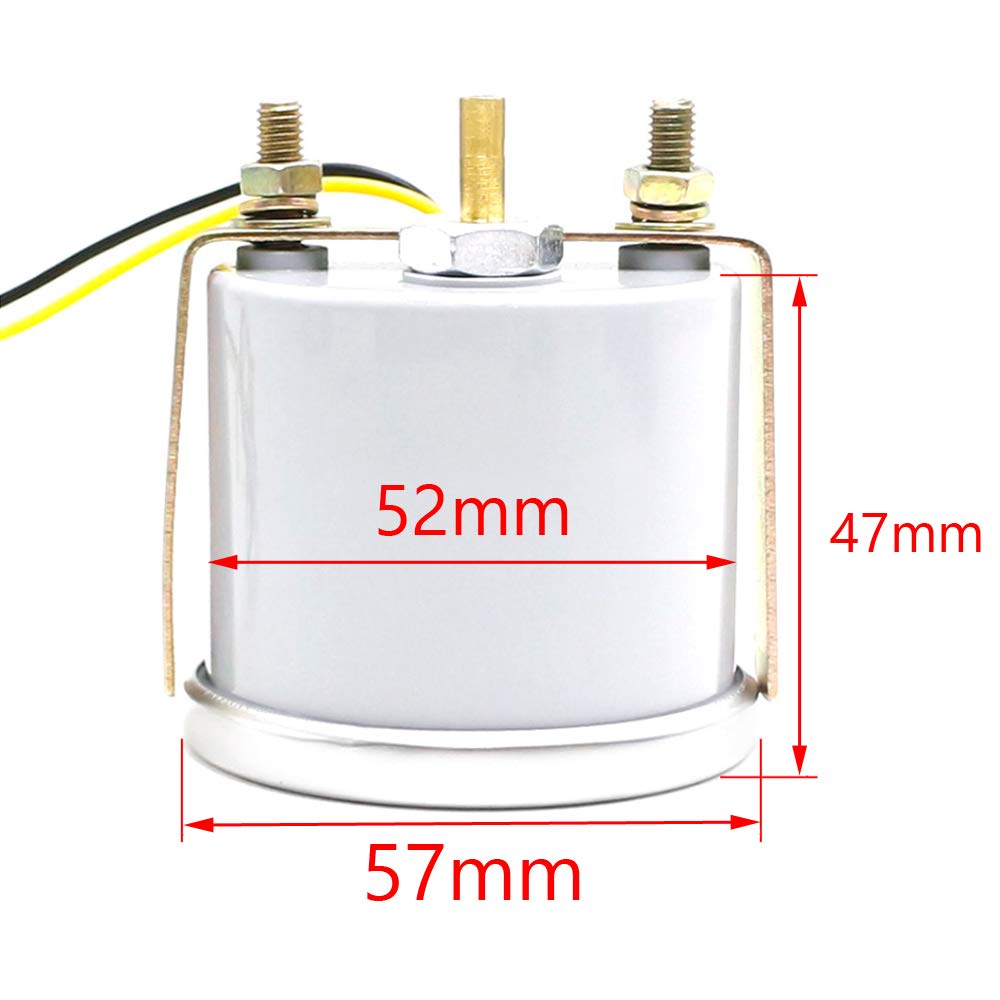

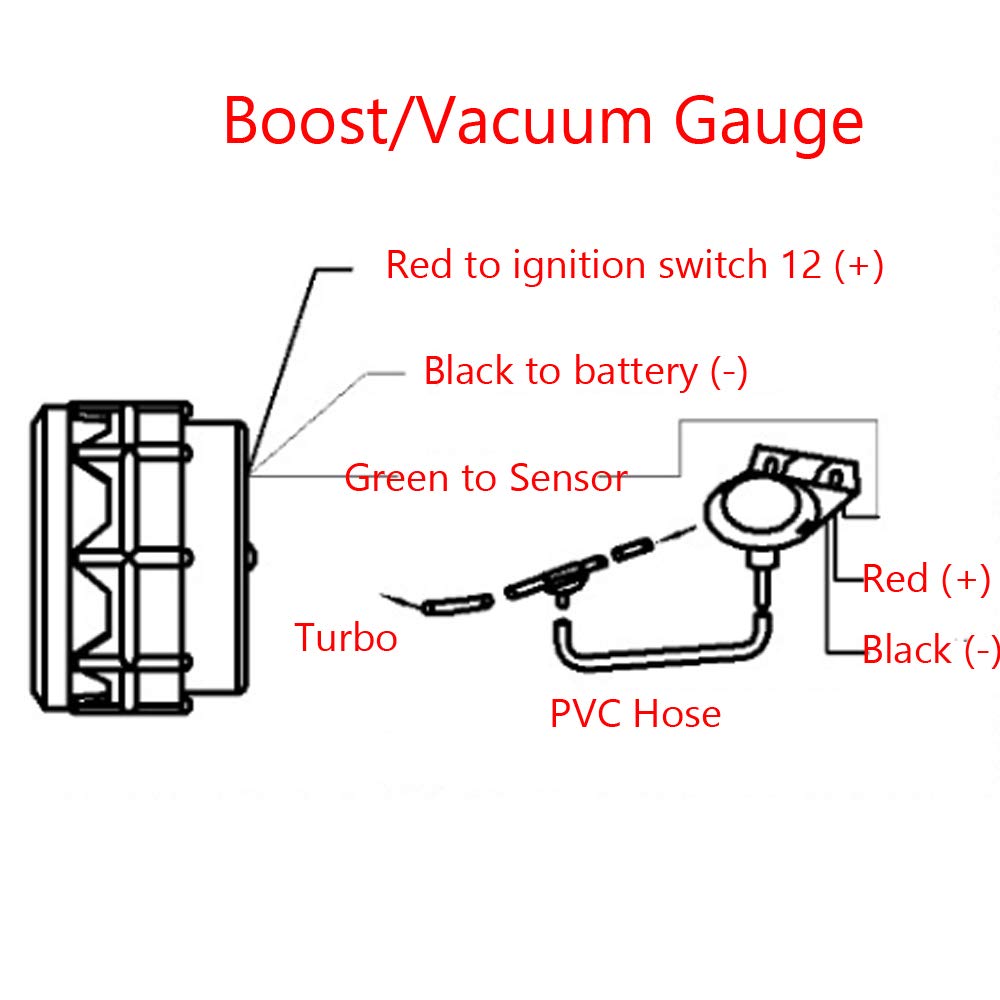

How to installation: 1.Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .Secure Gauge With Mounting Clamps Supplied. 2.Drill 3/8" Dia .Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall. 3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge. 4.Start Engine And Thoroughly Check Installation For Leaks. Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground. Package includes: 1 x Turbo Boost Gauge 1 x Nylon Pressure Line(1.84m) With One Adaptor 1 x Users Manual In English Smoke tint lens during the day,Clear and bright LED Display during the night. Watch more clearly. High quality movement Make product measurements more accurate, Faster measurement, pay attention to your car in real time. Blue Light Water Temp Fahrenheit Blue Light Voltage Red Light Oil Pressure White Light Water Temp Blue Light Tachometer Gauge Pod Holder Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 3.8 out of 5 stars 2,968 3.8 out of 5 stars 2,968 3.7 out of 5 stars 1,066 3.8 out of 5 stars 1,116 3.5 out of 5 stars 449 4.3 out of 5 stars 887 Price $17.99$17.99 $17.59$17.59 $20.29$20.29 $18.09$18.09 — no data $8.69$8.69 Diameter 52mm 52mm 52mm 52mm 52mm 52mm Light Color Blue Blue Red White Blue Black Power DC(10-15V) 12V Professional DC(10-15V) 12V Professional DC(10-15V) 12V Professional DC(10-15V) 12V Professional DC(10-15V) 12V Professional No With Sensor Yes No Yes Yes No No
