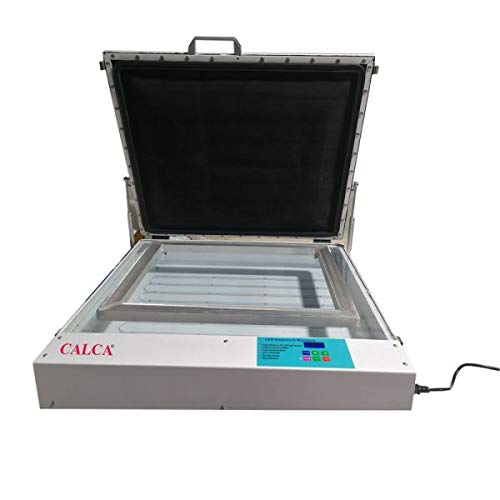

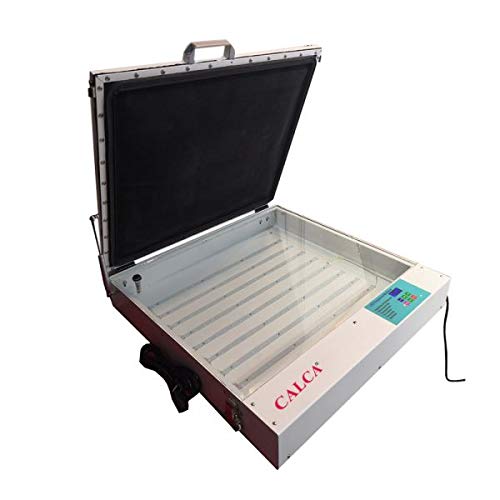

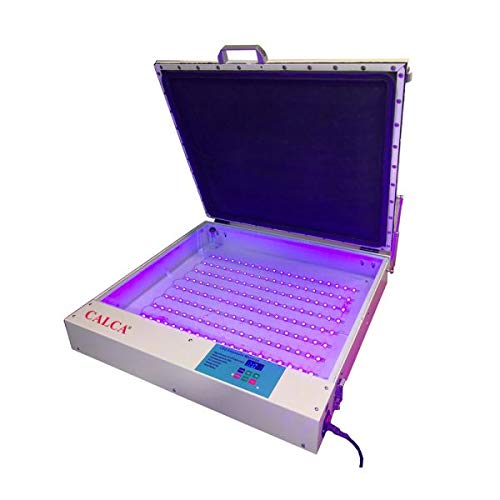

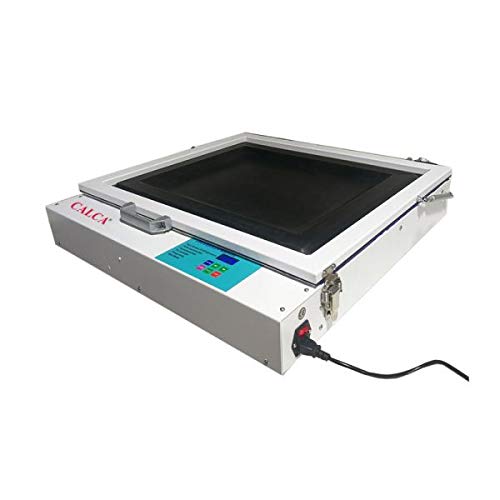

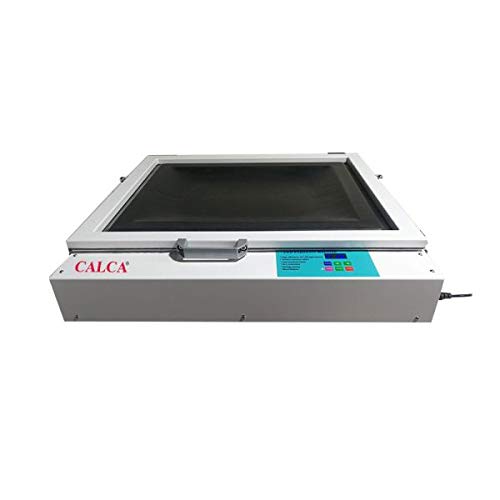

MELDIKISO 20" x 24" 80W Vacuum LED UV Exposure Unit for Screen Printing & PCB Making - Perfect for T-Shirt Printing, Sign Making, and DIY Crafts

The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. Specification: Max.exposing area/Max screen size:20"x 24"(52 x 62 cm) Voltage (single phase ): 220V or 110V Vacuum Degree:80 kpa Time control: 0-999s Power of lamps: 80W (8 x 10w UV LED-line) Packing Size: 33 x 32 x 9 inch /84 x 82 x 23 cm Gross Weight: 79.2 lb /36 kg Feature: High efficiency UV LED light source,which save 50% electricity than ordinary model. Vacuum model, high quality rubber cloth,longer lifetime. Built-in vacuum pump,very fast to vacuum. PLC controlled panel, very easy to operate. Automatic memory function for working as original seting next time Energy saving and environment friendly. Durable and beautiful with steel coat.

Max.exposing area/Max screen size 20"x 24"(52 x 62 cm); Voltage (single phase ) 220V or 110V; Vacuum Degree 80 kpa; Time control 0-999s; Power of lamps 80W (8 x 10w UV LED-line)

60 pcs LED Light Soursw; Fast 40-70 seconds exposure time; PLC controlled panel; Automatic memory function for working as original seting next time

Vacuum model, high quality rubber cloth; Stable exposure quality, more lifetime; Durable and beautiful with steel coat

Used in the filed of plate making, in pad plate, screen plate, hot stamper plate,resin plate, etc.
