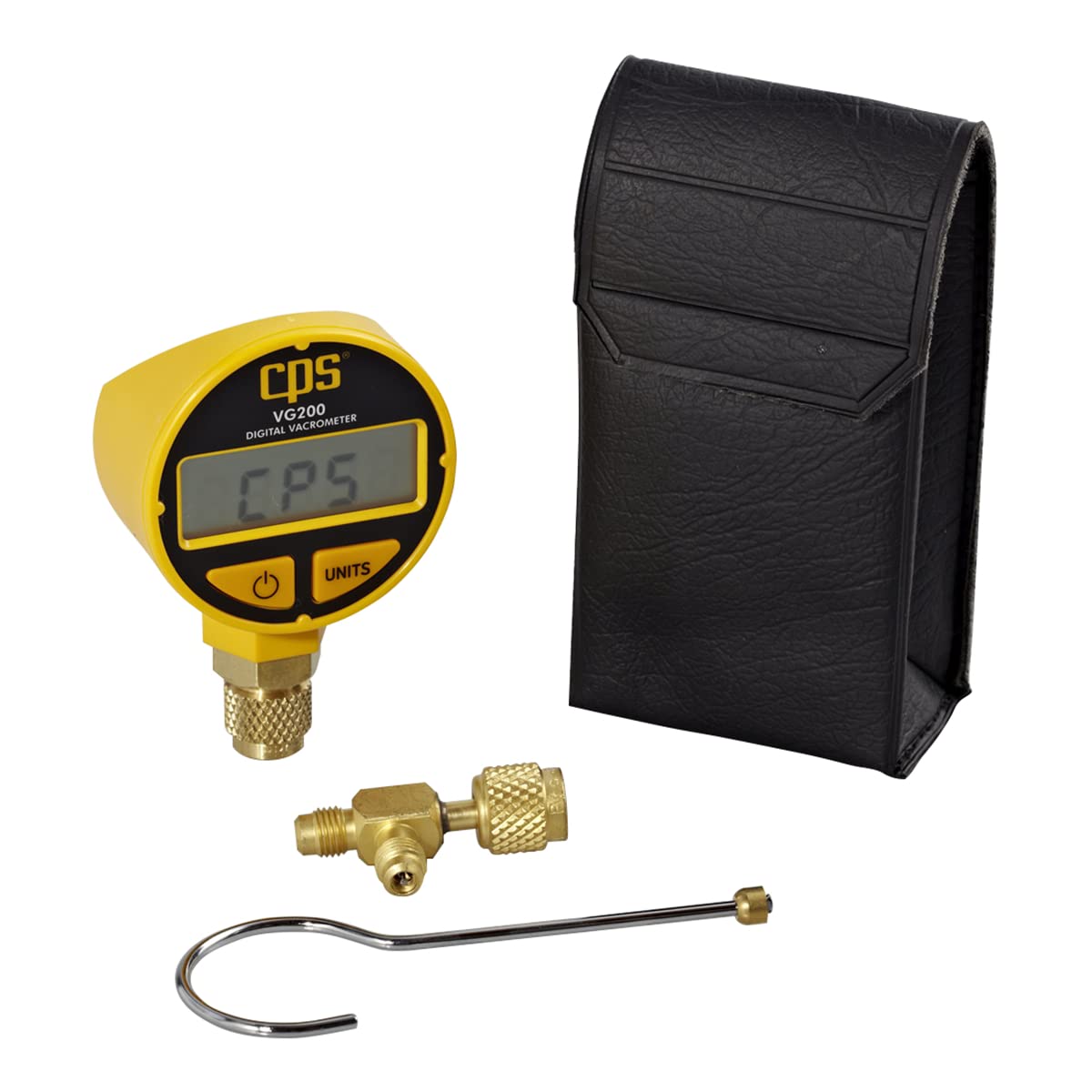

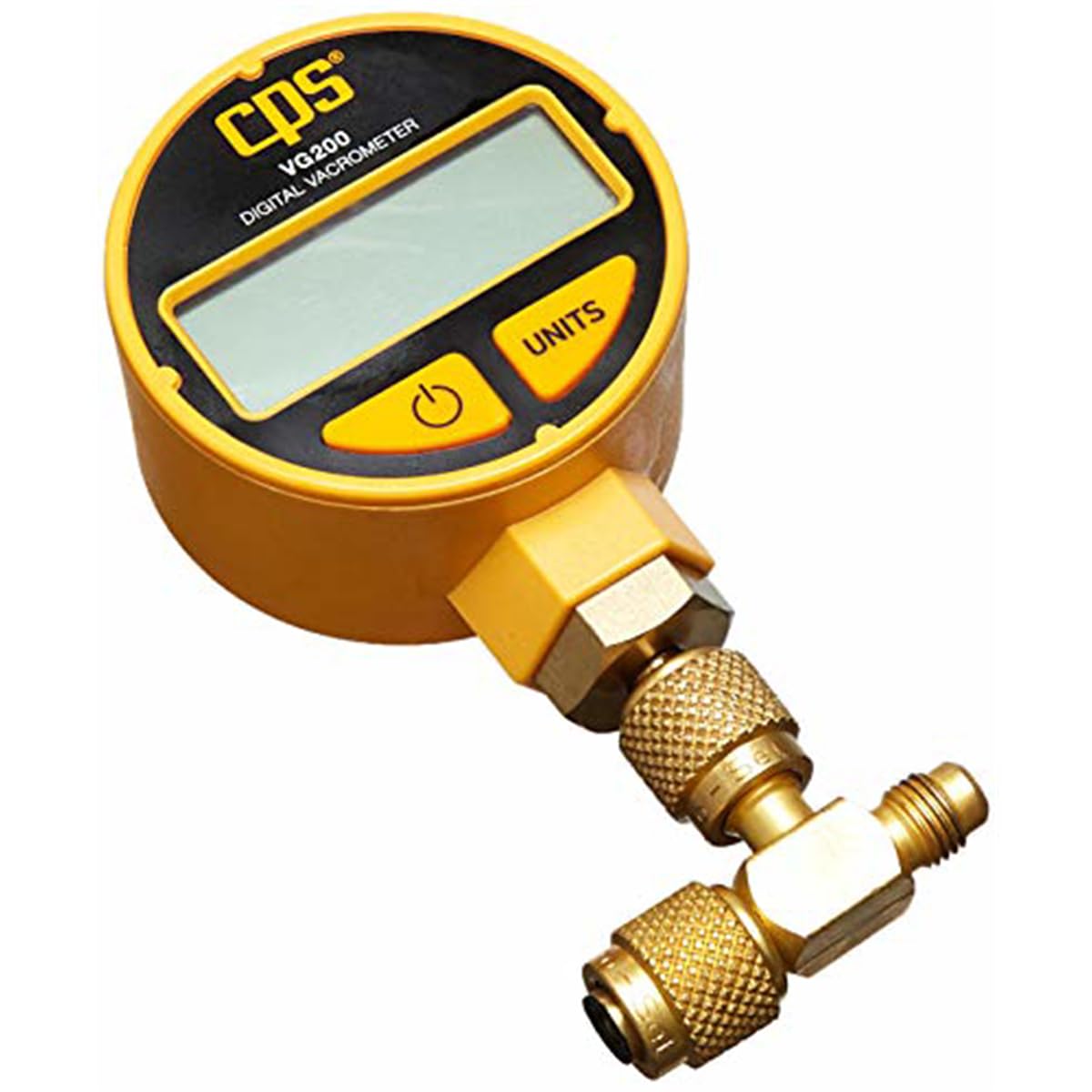

CPS VG200 Digital Vacuum Gauge - NIST Calibrated for Precision, 400 Psi Pressure Resistance, 5-Digit LCD Display | Ideal for HVAC/R Vacuum Testing, Refrigeration Maintenance & Automotive AC Diagnostics

CPS VG200 Digital Vacuum Gauge Monitors evacuation procedures from start to finish. Because of strict NIST standards and continuous calibration testing, the VG200 Digital Vacuum Gauge earned a reputation of being best-in-class for its accuracy and reliability. Get the flexibility to select or change units with the two simple button operation on the digital vacuum gauge: MICRONS, MILLIBAR, TORR and INCHES/HG quickly during any procedure. The digital vacrometer will also automatically compensate for varying temperature conditions, with no manual adjustments necessary. VG200 Digital Vacuum Gauge features: Calibrated to strict NIST standardsBest-in-class accuracy and reliabilityAutomatic temperature compensationCleanable sensor withstands 400 PSI positive pressureLarge, easy to read 5-digit LCD displaySelectable units: Microns, Torr, in/hg and mBar with the digital vacuum gauge. Specification SENSOR TYPE Self-heated thermistor bridge with integral temperature compensation from 0 to 50 °C (32 to 122 °F) OPERATING PRESSURE RANGE Atmospheric pressure to 1 micron. Maximum Working pressure: 400 PSIG BURST PRESSURE 3000 PSIG OPERATING RANGE Atmospheric to 1 micron ACCURACY +/- 10% of Reading OPERATING TEMPERATURE RANGE Compensated (accuracy as stated): 0°C TO 50°C (32°F TO 122°F) Non-compensated (add +/- 0.5% error for every °C outside compensated range): 0 to 50°C (-22 to 158°F) OPERATING & STORAGE HUMIDITY 0-95%, non-condensing STORAGE TEMPERATURE - 40 to 185°F / - 40 to 85°C POWER SOURCE One 9 volt alkaline battery (included) BATTERY LIFE 25 hours of continuous use. Auto-off after 10 minutes WEIGHT 5.5 oz. / 153 g. excluding the battery DIMENSIONS 68 mm. diameter by 40 mm. deep by 124 mm. overall height (2.7" dia. by 1.6" deep by 5" overall height) MECHANICAL CONNECTION Standard 1/4" female SAE refrigerant hose type with core depressor BATTERY INDICATOR Battery symbol with 3 segment Power Level Bar Graph (VG200)

ACCURATE - Calibrated to strict NIST standards for best-in-class accuracy and reliability.

SMART DESIGN - Advanced sensor design with self-heated thermistor bridge and automatic temperature compensation.

SIMPLE TO CLEAN - Field cleanable sensor designed to withstand 400 Psi of positive pressure.

EASY TO READ - Continual digital readout of evacuation process on large, easy to read 5-digit LCD display.

USER SELECTABLE UNITS - Choose between microns, torr, in/hg or mBar.
