EustomA 18L/23L Class B Autoclave Sterilizer - Full Automatic, 3 Pre-Vacuum Cycles, Blue LCD Display, Benchtop Lab Equipment for Dental Clinics, Hospitals & Laboratories (JQ-23 23L Model) - Perfect for Medical Instrument Sterilization and Laboratory Use

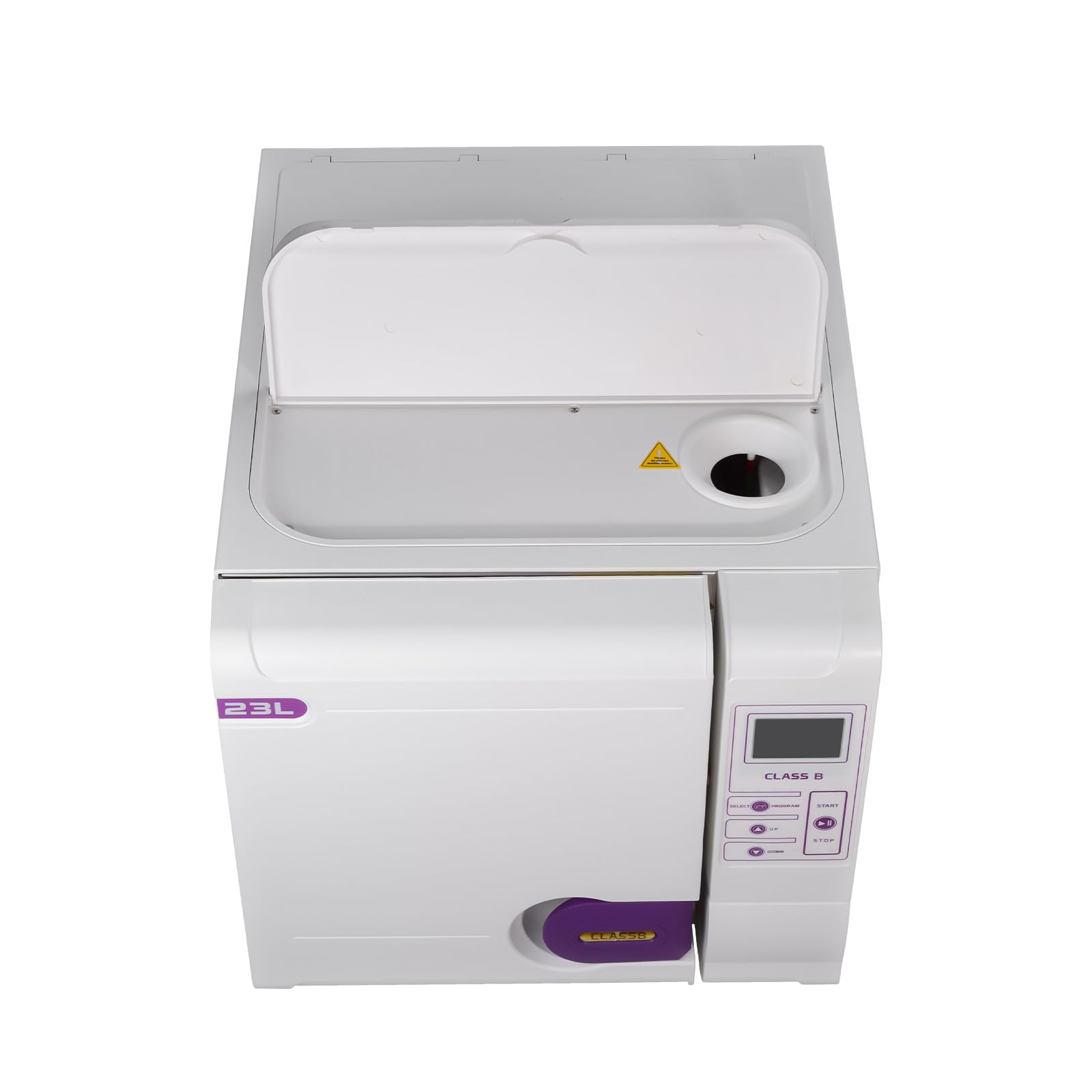

Previous page 3 Times Pre-Vacuum Temperatures：249.8℉/273.2℉ Use the machinery and electronic double-control lock Blue LCD Display 128X64Dots LCD,multi languages Broad vent light makes good heat dissipation Chamber size 23L(6.07Gal):250X450mm（9.8*17.7"） 5-layer activity pallet rack with 3 trays Capacity of reservoirs Two water tanks inside 4L fresh water and 3.5L waste water High temperature high pressure Print by optional external mini-printer or download by USB port Next page 1 Class B 2 Full-Automatic 3 Accessories 4 Water supply system 5 Sterilizing data The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Please read the manual before operation Instructions 1.Be sure to use distilled water in order to prolong the life of sterilizers.2.Clean the water tanks and water filter regularly.Do not move the sterilizer during the process of work.3.Try to put the same kind of instrument in the same sterilizer flatly,leave aperture, make sure steam can penetrate easily.4.Make sure the machine in good condition, especially the safe valve.5.Do not open the door until the pressure fall down to “0” bar. Previous page Two temperatures 249.8 ℉：Not resistant to high temperature equipment 273.2 ℉：High temperature resistant equipment Machine placement Put sterilizers on horizontal worktable and raise the front two supporting stands slightly. How to start The machine can only be started by closing the door after being powered on. Other To terminate sterilization, long press the start button. Next page 1 Two temperatures 2 Machine placement 3 How to start 4 Other Model JQ-23 Capacity 23L(6.07Gal) Temperature 121℃/249.8 ℉, 134℃/273.2 ℉ Dry procedure Vacuum drying Display 128X64 Dots LCD,multi languages Program 12 kinds of programs Test program Vacuum test,Helix test Power AC 110V or 220V±10% Frequency 50/60Hz Sterilization Class European class B Rated power 1600W 23L Chamber size(mm) 250X450mm（9.8*17.7"） N.W./G.W.(KG) 47/50KGS（103.6/110.2lb） Packing size(mm) 660X550X560mm(26*21.6*22")

Steam generator and heating coil work separatelySeparate heating work of steam generator and heating coil lead to easy manipulation of the speed and volume of steam, reducing the water consumption. Heating coil lifetime is prolonged because its temperature will fall when chamber temperature goes up

Material of cover is safe and reliableCovers and chambers are made of imported 2mm SU304 stainless steel which will guarantee safety at a high pressure inside chambers and avoid the second pollution caused by the corrosion

Advantages of the control systemGetidy innovates and develops new technology to control temperature and pressure and ensure the tolerance temperature inside chamber is less than 0.5℃

The reliability of measurement accuracyThe accuracy of temperature is 0.5℃，and the accuracy of pressure is 0.1bar

The safety of double-control lockUse the newest machinery and electronic double-control lock ,to ensure the safety during the operation

Automatic and manual adjustment of temperature sensorThe temperature sensor can adjust automatically or manually at will to ensure the autoclave work in different atmospheric environments

Wooden box packagingStronger and safer, protecting the machine and avoiding damage during transportation
