**AC Gauges and Vacuum Pump Kit - 3 CFM 1/4 HP HVAC Vacuum Pump & R410a R134a R22 Manifold Gauge Set with 4FT Hoses, Adjustable Couplers, Adapter & Can Tap - Perfect for AC Repair, Refrigerant Charging & HVAC Maintenance**

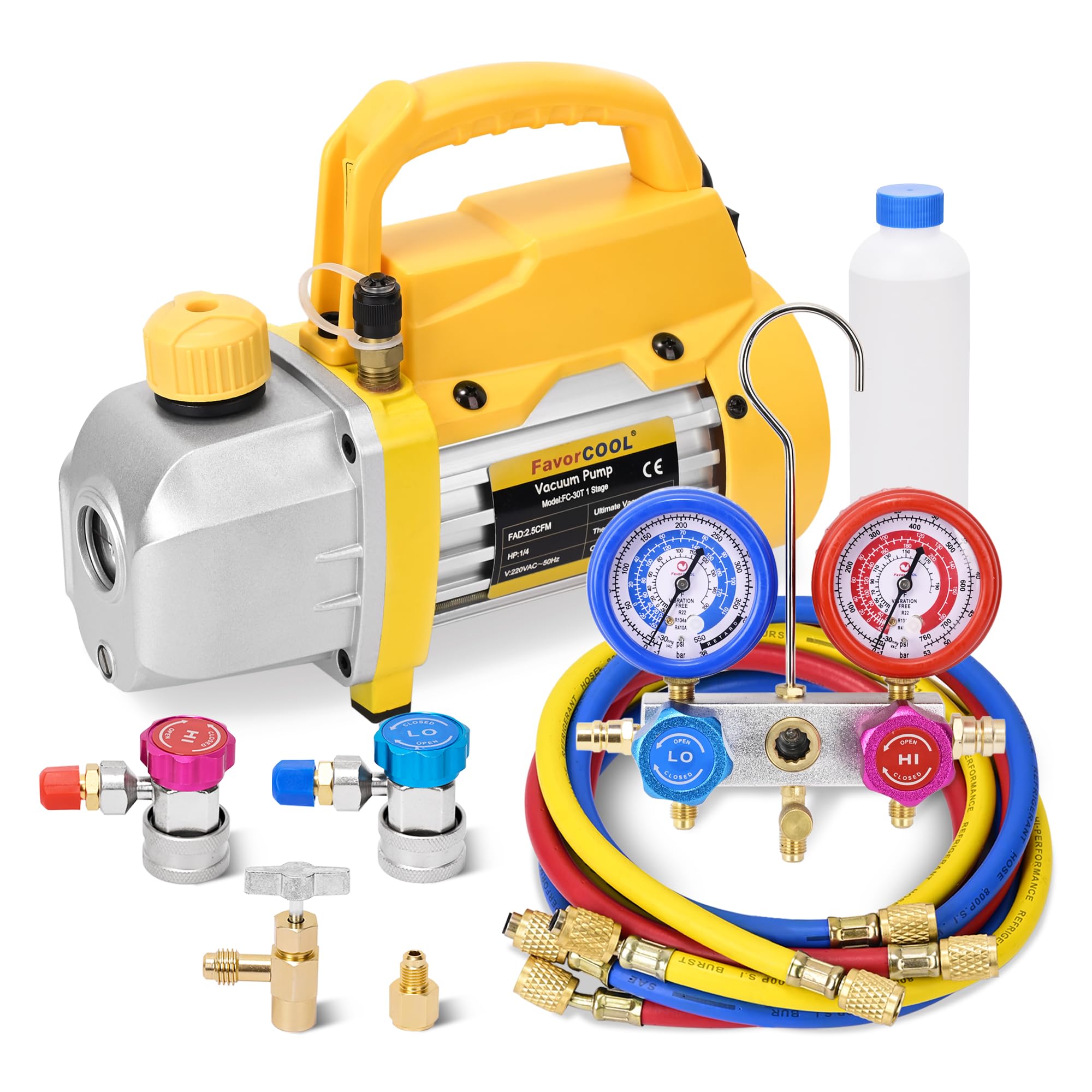

Why choose us? Complete Set: This vacuum pump and gauge set with accessories can be used for HVAC charging, diagnostic check, and repair work. Easy Operation: Use this vacuum pump and gauge set to service your vehicle's HVAC system by yourself thanks to its detailed instructions. Precise & Efficient: The high-precision gauge offers accurate readings and the powerful vacuum pump provides strong suction for faster operation. Superior Materials: The lightweight cast aluminum structure casing provides fast heat dissipation and long service life. Compact Design: Neatly packaged and lightweight, this vacuum pump is easy to transport and store. FavorCOOL AC Gauges and Vacuum Pump Kit A Complete Toolkit for HVAC, Mini-Split & AUTO A/C Repair FavorCOOL air vacuum pump and R410a AC manifold gauge set, includes a powerful 1/4 HP 3 CFM vacuum pump, 3-way gauge, 3 color-coded 4ft hoses for R410a recharging, 2 adjustable 1/4'' aluminum made quick couplers, plus a brass tank adapter and a can tap 1 bottle of 170ml vacuum oil is also included for easy refrigerant evacuation, restoring, and other automotive AC repair work ROTARY VANE VACUUM PUMP FavorCOOL single-stage 3 CFM rotary vane vacuum pump is powered by a 1/4 HP all copper motor to keep your HVAC servicing fast and easy. Its 3 cfm flow rate can draw your system down as low as 37.5 microns (5 Pa). Intake Ports: 1/4"Flare. Voltage/Frequency: 110/60HZ. Oil Capacity: 170 ml. COMPLETE GAUGE SET FavorCOOL multifunctional AC / HVAC gauge set includes a 3-way gauge, 3 color-coded 4ft hoses for R410a recharging, 2 adjustable 1/4'' aluminum made quick couplers, plus a brass tank adapter and a can tap; professional 3 valve air conditioning diagnostic manifold gauge set which is completely compatible with R134a R410a R22 R502 refrigerants. WIDE APPLICATION FavorCOOL single-stage Air Vacuum Pump Set is widely used in HVAC Refrigerant Recovery, A/C Repair, or recharging an automobile A/C. Ideal for maintaining R22, R134a, and R410a air conditioning systems. Unconvention usages include Wine Degassing, Medical Purposes, Automatic Milking, and much more. Troubleshooting Guide Your pump has been for dependable use and long life. If something should go wrong, the following guide will help you get the pump back into service as quickly as possible. 1. Failure To Start VACUUM PUMP Check the line voltage. The pump ends to start at±10% line voltage (loaded) at 32F. At extremes, switching between the start and run windings may occur. 2. Oil leakage (1) Be sure the oil is not a residual accumulation from spillage, etc. (2) If leakage exists the module cover gasket or the shaft seal may need replacing. If leakage exists in the area of the oil drain plug you may need to reseal the plug using a commercial pipe thread sealer. 3. Failure To Pull A Good Vacuum (1)Be sure the vacuum gauge and all connections are in good condition and leak-free. You can confirm leakage by monitoring the vacuum with a thermistor gauge while applying vacuum pump oil at connections or suspected leak points. The vacuum will improve briefly while the oil is sealing the leak. (2)Be sure the pump oil is clean. A badly contaminated pump may require several oil flushes. (3)Be sure the oil is at the proper level. For maximum pump operation, the oil must be even with the OIL LEVEL line on the sight glass when the pump is running. Do not overfill----operating temperatures will cause the oil to expand, so it will appear at a higher level than when the pump is not running. Yo check the oil level, start the pump with the inlet capped, and Check the oil level in the sight glass. Add oil if necessary. FavorCOOL AC Gauges and 3 cfm 1/4 HP Vacuum Pump Kit FavorCOOL 3.6 cfm 1/4 HP AC Vacuum Pump and Gauge Set FavorCOO Single Stage HVAC Vacuum Pump 3 CFM Rotary Vane Vacuum Pump FavorCOOL Single Stage HVAC Vacuum Pump 3.6 CFM Rotary Vane Vacuum Pump FavorCOOL HVAC Gauges, AC Manifold Gauge Set for R410a R134a R22 Refrigerant Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 3.8 out of 5 stars 146 4.4 out of 5 stars 108 4.3 out of 5 stars 113 4.2 out of 5 stars 74 4.5 out of 5 stars 146 Price $149.99$149.99 $176.99$176.99 $59.89$59.89 — no data $59.84$59.84 Voltage/Frequency 110V/60HZ 110V/60HZ 110V/60HZ 110V/60HZ no data Flow Rate 3 CFM 3.6 CFM 3 CFM 3.6 CFM no data Ultimate Vacuum 5 Pa 5 Pa 5 Pa 5 Pa no data Dimensions 305 x 254 x 236(mm) 322 x 276 x 234(mm) 308 x 255 x 146(mm) 340 x 284 x 175(mm) 310 x 299 x 84(mm) Oil Capacity 170ml 300ml 170ml 300ml no data Manifold Gauge ✓ ✓ no data no data no data

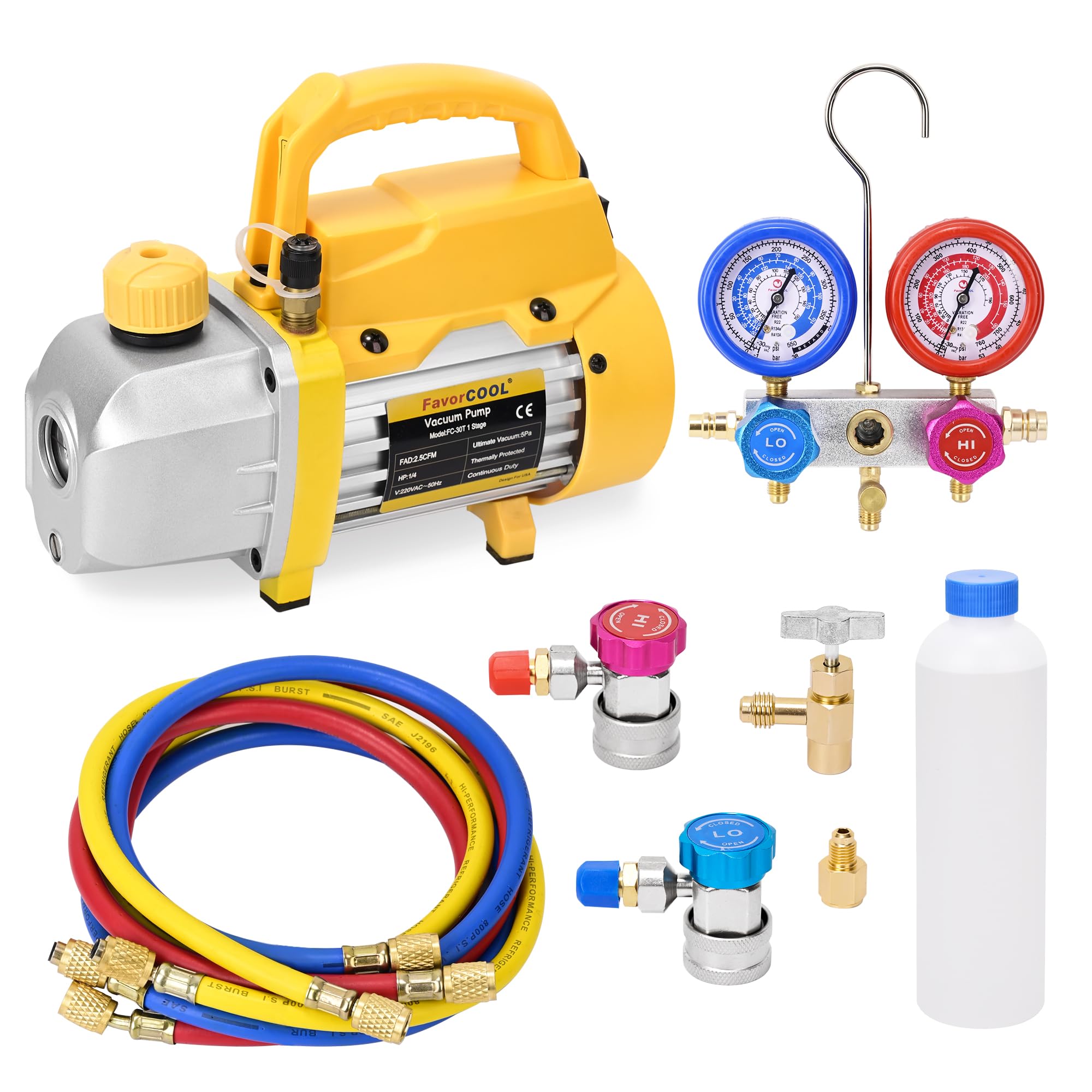

EFFECTIVE SERVICE SET --- FavorCOOL ac vacuum pump and gauge set, includes a powerful 1/4 HP vacuum pump, 3-way gauge, 3 color-coded 4ft hoses for R410a recharging, 2 adjustable 1/4'' aluminum made quick couplers, plus a brass tank adapter and a can tap 1 bottle of 170ml vacuum oil is also included for easy refrigerant evacuation, restoring, and other automotive AC repair work

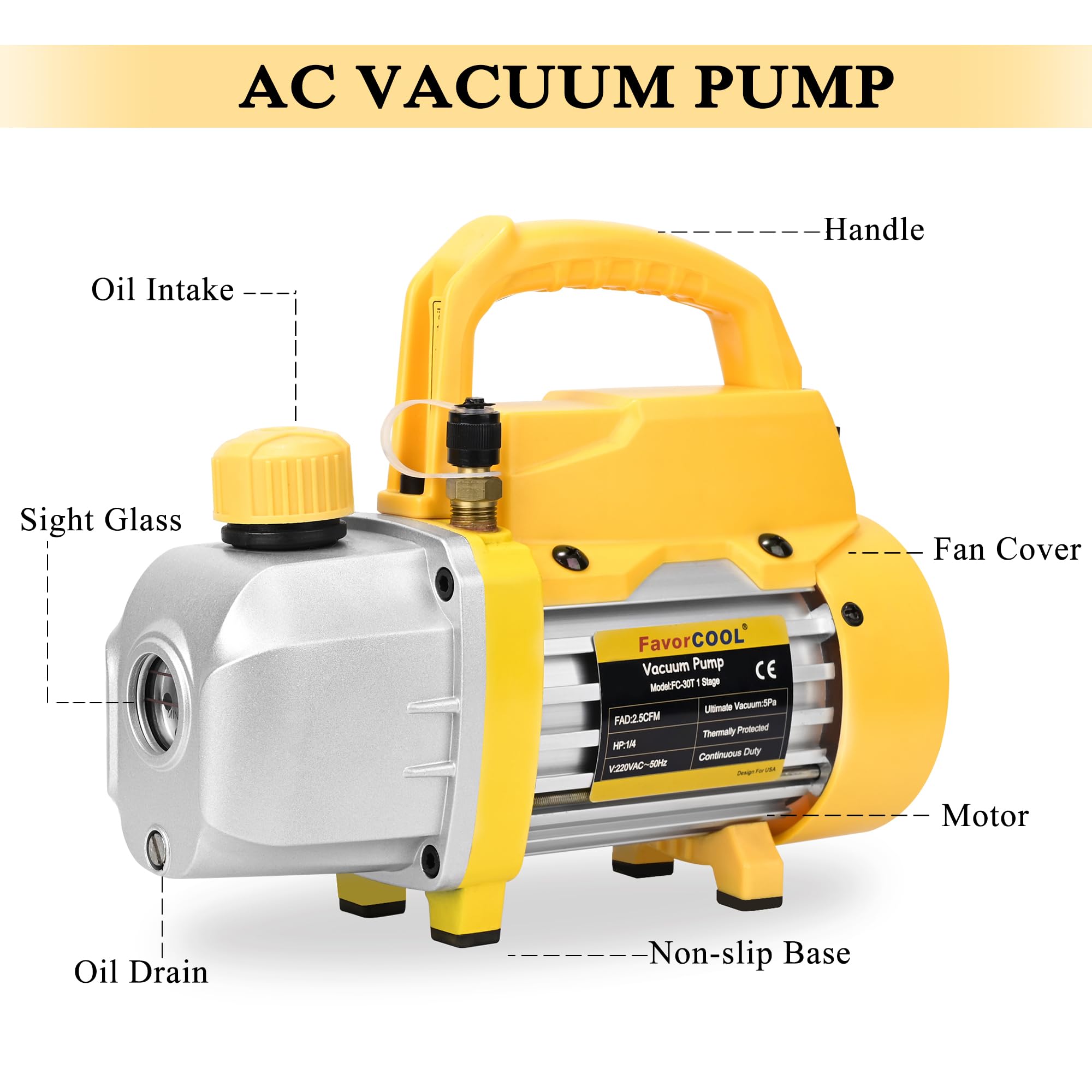

ROTARY VANE VACUUM PUMP --- FavorCOOL single-stage 3 CFM rotary vane vacuum pump is powered by a 1/4 HP all copper motor to keep your HVAC servicing fast and easy. Its 3 cfm flow rate can draw your system down as low as 37.5 microns (5 Pa). Intake Ports 1/4"Flare. Voltage/Frequency 110/60HZ. Oil Capacity 170 ml.

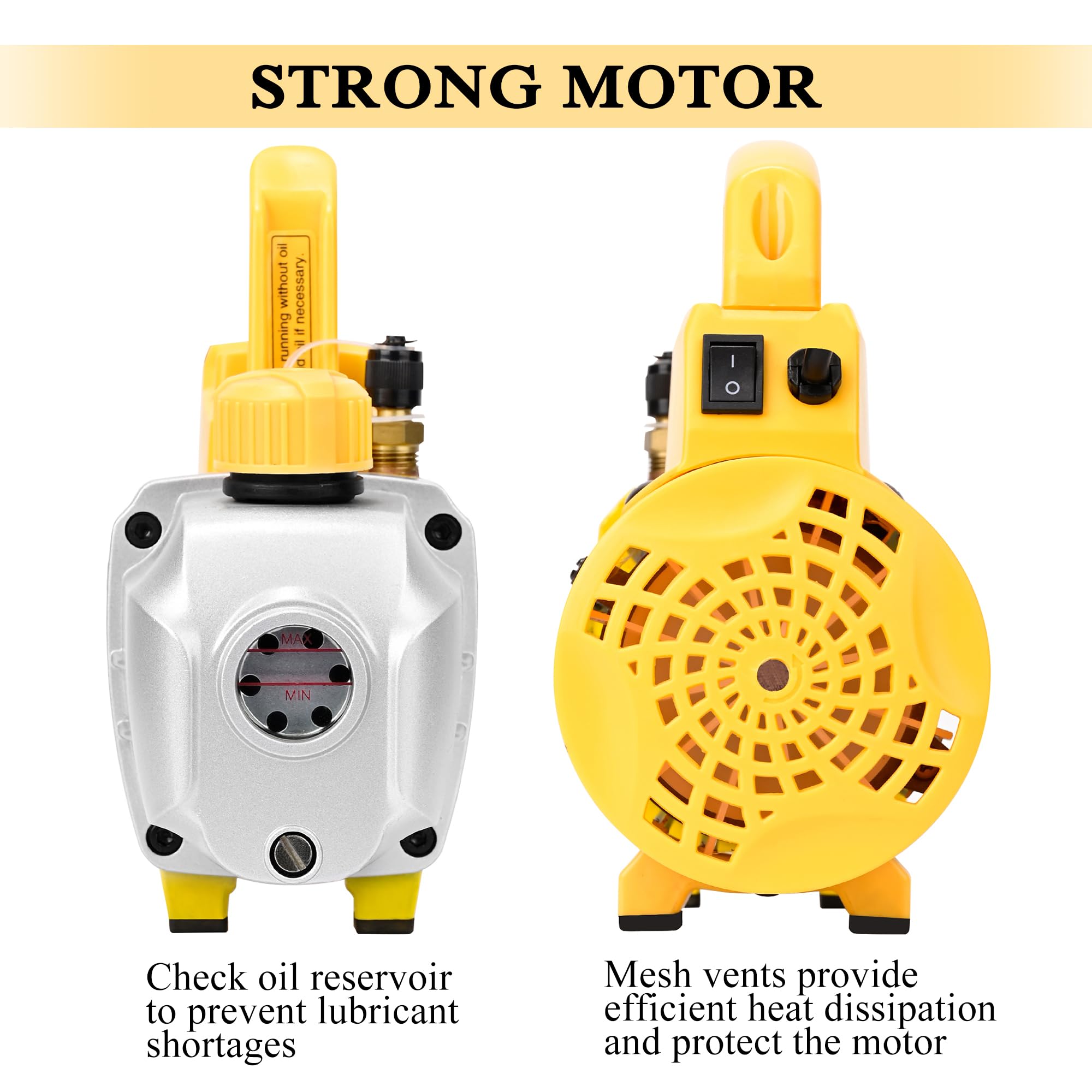

DURABLE VACUUM PUMP --- The lightweight cast aluminum structure effectively dissipates the heat generated during operation and resists chemical corrosion to ensure years of beneficial use; Its innovative design also prevents oil backflow and separates the exhaust from any oil vapors, limiting contamination and providing safer operation.

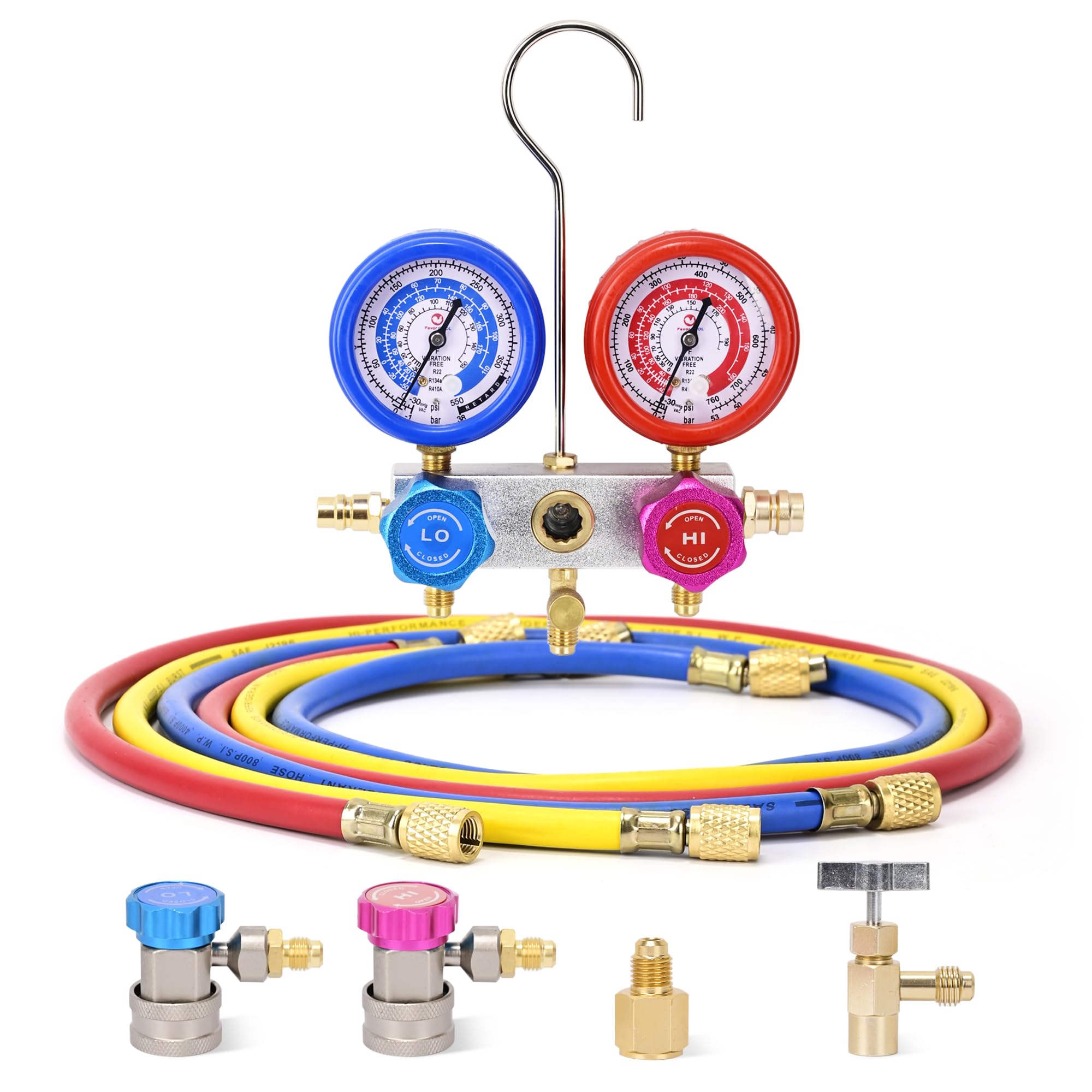

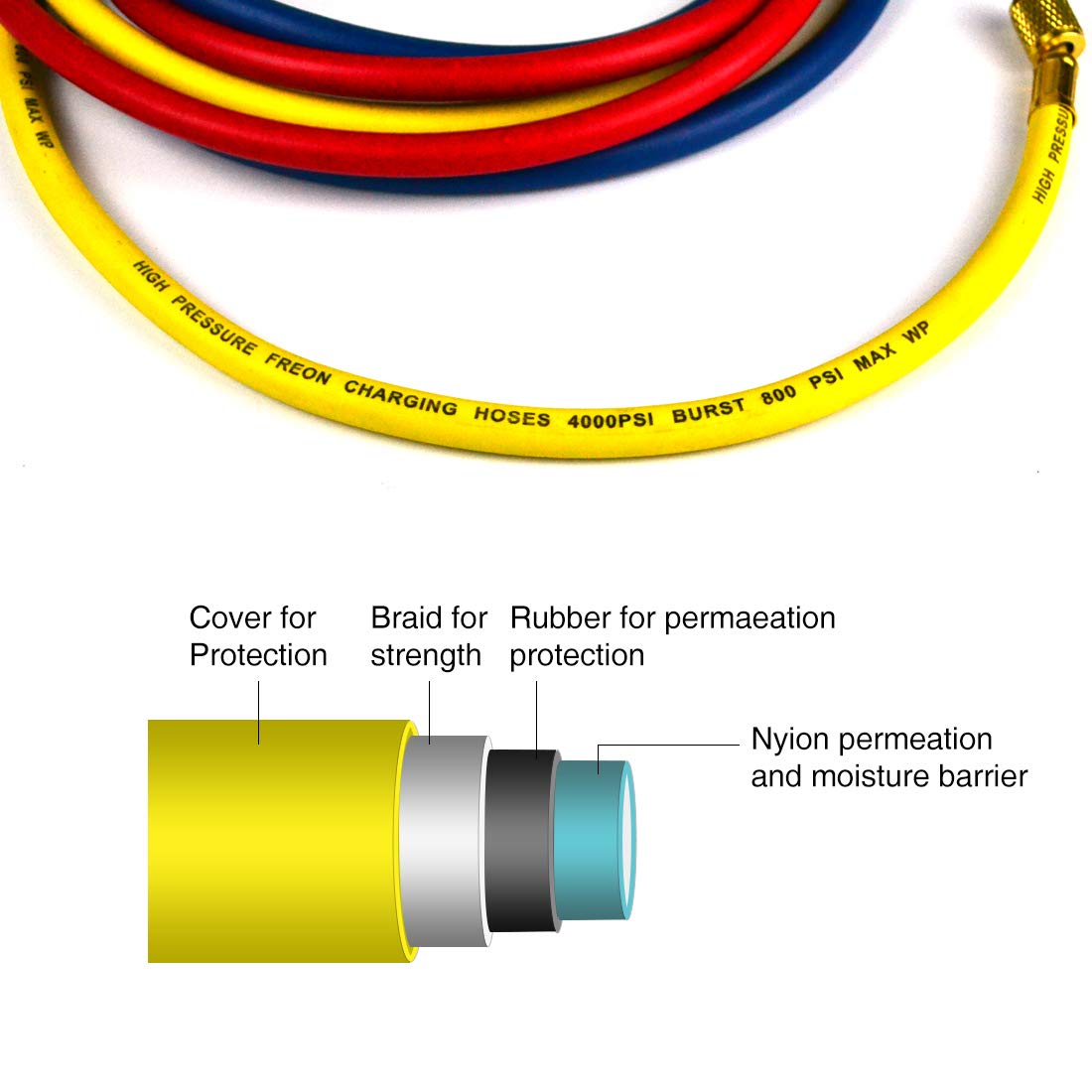

HIGH ACCURACY AC GAUGES --- The manifold AC gauge set is excellent for diagnosing and repairing AC systems. Ideal use for R22, R134a, and R410a, our charging hoses are made by 100% Virgin Teflon Diaphragms with the highest industry standards, fit the high-pressure requirements for charging R410A, Working Pressure 800psi, Brust Pressure 4000psi. Much higher and safer than most other products on the market.

WIDE APPLICATION --- FavorCOOL single-stage rotary vane vacuum pump. Widely used in automotive air conditioning and HVAC work. Ideal for maintaining R22, R134a, and R410a air conditioning systems. As well as wine degassing, milking, medical treatment, and food processing.

Warm reminder----We value customer satisfaction and want to ensure they fully understand how to use our products. Remember, a vacuum pump is a device that uses various methods to create and maintain a vacuum in a confined space. Vacuum pumps often malfunction if not operated properly. Please read the user manual and the six common vacuum pump faults and solutions carefully, its strong 1-year warranty and FavorCOOL's friendly 24/7 customer service give you peace of mind.
